Custom Engineered Sanitary Ribbon Mixers With Bulk Bag & Tote Loading By PerMix
Since 1954 PerMix has been leading the industry with our engineering, setting the standards others follow. Disruptive by nature, driven by perfection, our mixers lead in innovation, performance, quality, & price, winning the hearts of our customers.

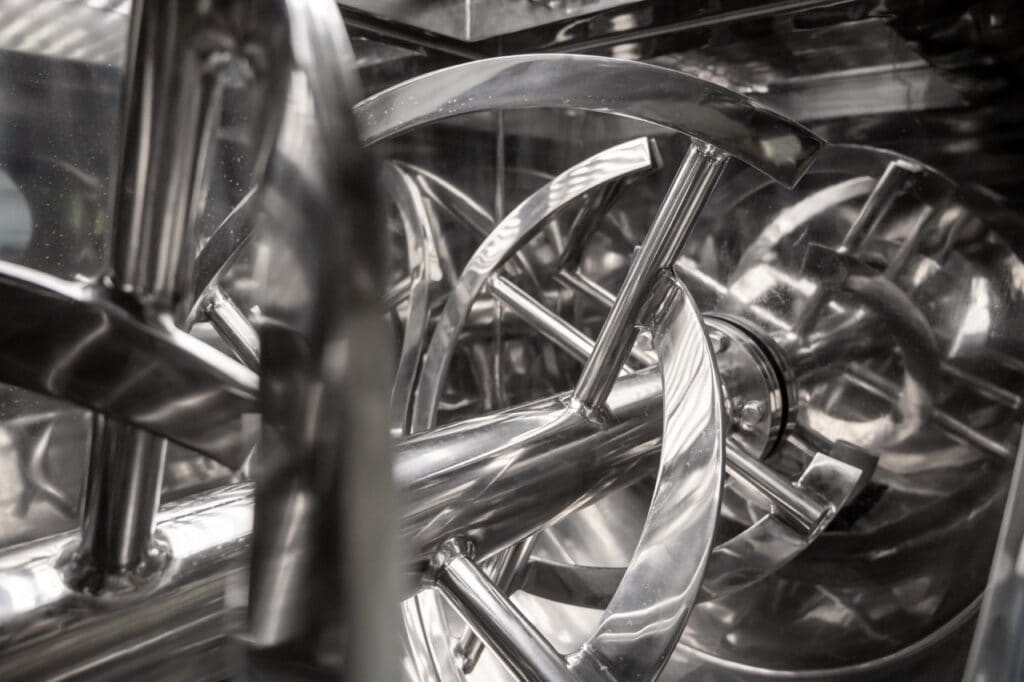

PerMix sanitary ribbon mixer are designed to meet the needs of today, keeping in mind the demands of tomorrow. Our ribbon mixers are available in sizes from 10 liters to 30,000 liters as standard, and larger units available upon request. Here is our PRB-3,000, a 3,000 liter capacity ribbon mixer. The unit is sanitary in construction and includes a bulk bag/tote loading option that we specified by the customer. In addition, the center bottom discharge is also designed to fill super sacks when finished mixing. The smaller bottom valve you see is a drain valve for washout drainage.
Come see the PerMix difference
PerMix PTS series Plow Mixers, also known as Ploughshare Mixers, is one of our two types of Turbulent Mixer, which are originally designed by our Israeli engineers. The other one is PTP series Paddle Mixer.
PTS ploughshare mixer is so versatile that it can handle nearly all types of materials including dry powders, granular materials, short fibered substances, moist solids with liquids, pasty materials and highly viscous masses.
INSTALLATION AND SET-UP:
PerMix PTS series Ploughshare Mixer consists of a centrally mounted horizontal shaft that rotates within a cylindrical container, plough shaped mixing elements that are attached to the centrally mounted shaft, special openings at the top for feeding materials, flush fitting access doors in the front of the mixer, a flush fitting discharge valve at the bottom of the mixer which is pneumatically or manually operated, and a complete drive unit.
Dry powder mixing: Food flavoring/additives, Sponge/cake mixes, Cosmetics, Pharmaceuticals, Cement, Powdered rubber. Paste mixing: Biscuit creams, dough, PVC pastes, Car body fillers/putties, Sugar/marzipan paste, Toiletry pastes, Tile adhesives and grouts. Mixing of wet slurries: Filter cake re-slurrying, dough, Fiber glass resin dough putty. Wet granulation,Liquid coating of powders and granules,Fat and oil incorporation,Vacuum drying,Hot air drying.
OPTIONAL VACUUM MIXER/DRYER CONFIGURATION:
The PerMix PTS-D series Vacuum Mixer Dryer is a turbulent mixing reactor-dryer. It is used as a high-speed mixer dryer, chemical reactor or, if both processes are combined, as a dryer-reactor. They are used with particular success in agglomeration-free rapid drying, heterogeneous reactions with systems of different substances, extraction, sterilization and in general for vacuum, positive-pressure, thermal energy and comminuting aids. WORKING PRINCIPLES: The considerably superior heat transfer characteristics of PerMix PTS-D series Vacuum Mixer Dryer are mainly attributable to the fact that external heat applied through the contact surfaces of the mixing vessel and mixing element, supplemented by frictional heat generated during the mixing process. When operating at the usual speed, this accounts for 30 to 35 percent of the total heat applied. Heat transfer is not inhibited by agglomerates or layers of material adhering to the internal components of the tank. This is largely due to the comminuting units and the high-speed, edge-sweeping paddle agitators, which ensure rapid circulation of the materials at the contact faces.
- Different mixing elements (paddles, plows, ribbons, or combined tools)
2. PerMix multichopper unit
3. Different sealing arrangements (packing seals, double mechanical seal, Cinchseal, etc)
4. Vacuum filter housing
5. Heating jacket for electric heater, thermal oil, steam, etc
6. Flush-fitting semi-ball discharge valve
7. Special spraying unit for coating
8. Open sidewall for cleaning purposes
9. Pneumatic semi-ball discharge valve
10. Discharge screw
11. Different metal constructions (SS304, SS316L, Titanium, Duplex steel, Hastelloy, etc.)
12. Heated shaft
13. Sampling port
14. Explosive-proof construction
15. Control board, etc.
- Cost savings: The PerMix PTS-D series Vacuum Mixer Dryer combines several machines: less pipe-work, fewer control and space requirements
2. Short reaction times
3. Optimum heat transfer via large contact areas
4. Turbulent mixing by mechanical fluidization of reaction material
5. No dead areas in reactor and the discharge areas
6. The PerMix PTS-D series Vacuum Mixer Dryer can also be supplied with removable mixing tools.
7. Easy to clean and sterilize
8. Long service life through the use of corrosion-resistant reactor materials (Stainless Steels, Hastelloy, Titanium, Nickel Alloys)
Eliminate Confined Space Entry For Cleaning & Maintenance Without Increasing Floor Space With PerMix’s Cantilever Design
Since 1954 PerMix has been leading the industry with our engineering, innovation, performance, & quality, all while keeping realistic pricing that is affordable by all budgets. Our cantilever design is a testimonial of that.
PerMix’s cantilever design gives users the ability to open the end of the mixer and expose the interior completely. The cantilever design allows for the interior to be exposed without the need for overhanging pillars that competitors have that doubles the floor space needed and creates overhang obstacles. This is crucial in saving space as well as creating a safer workplace environment.
By having a cantilever design, the need for confined space entry to clean and perform maintenance is eliminated. It also decreases the time needed for maintenance, cleaning, and inspection. All things that create a perfect balance needed to increase production and decrease downtime.
And PerMix did this all without adding a huge cost to the mixer. Any of our mixers can have the cantilever design added as an option without creating a huge additional cost. Something our competitors have yet to figure out.
Come see the PerMix difference.
Recipharm Chooses PerMix Double Cone Dryers To Meet Demands Of R&D Team.
When the R&D team at Recipharm needed a Double Cone Dryer they chose PerMix because of our ability to combine innovation, performance, quality, & pricing, meeting their demands while still keeping a budget.
The 2 cubic foot PerMix Double Cone Dryer was a turn-key system that included a jacketed mixer that was also rated for internal vacuum. The system also included a temperature control unit and a condensing unit that was also jacketed.
Come see the PerMix difference
Powder Blending At Its Best – PerMix Paddle Mixers Lead The Industry In Innovation, Performance, &. Quality
Since 1954 PerMix has been leading the industry with its mixing solutions. Whether you are mixing powders, pastes, or liquids, PerMix has the solution to your mixing needs. From 3M to McCormick or a local restaurant or co-packer, PerMix is the most disruptive brand in the industry because of our ability to combine innovation, performance, & quality, while remaining affordable for all budgets.
Here is our most recent addition to the PerMix family, a 300-liter paddle mixer with center bottom discharge. the interior is polished and is 316 stainless steel contact, 304 stainless non-contact. Simple and small in design, but big & robust in performance.
Come see the PerMix difference
