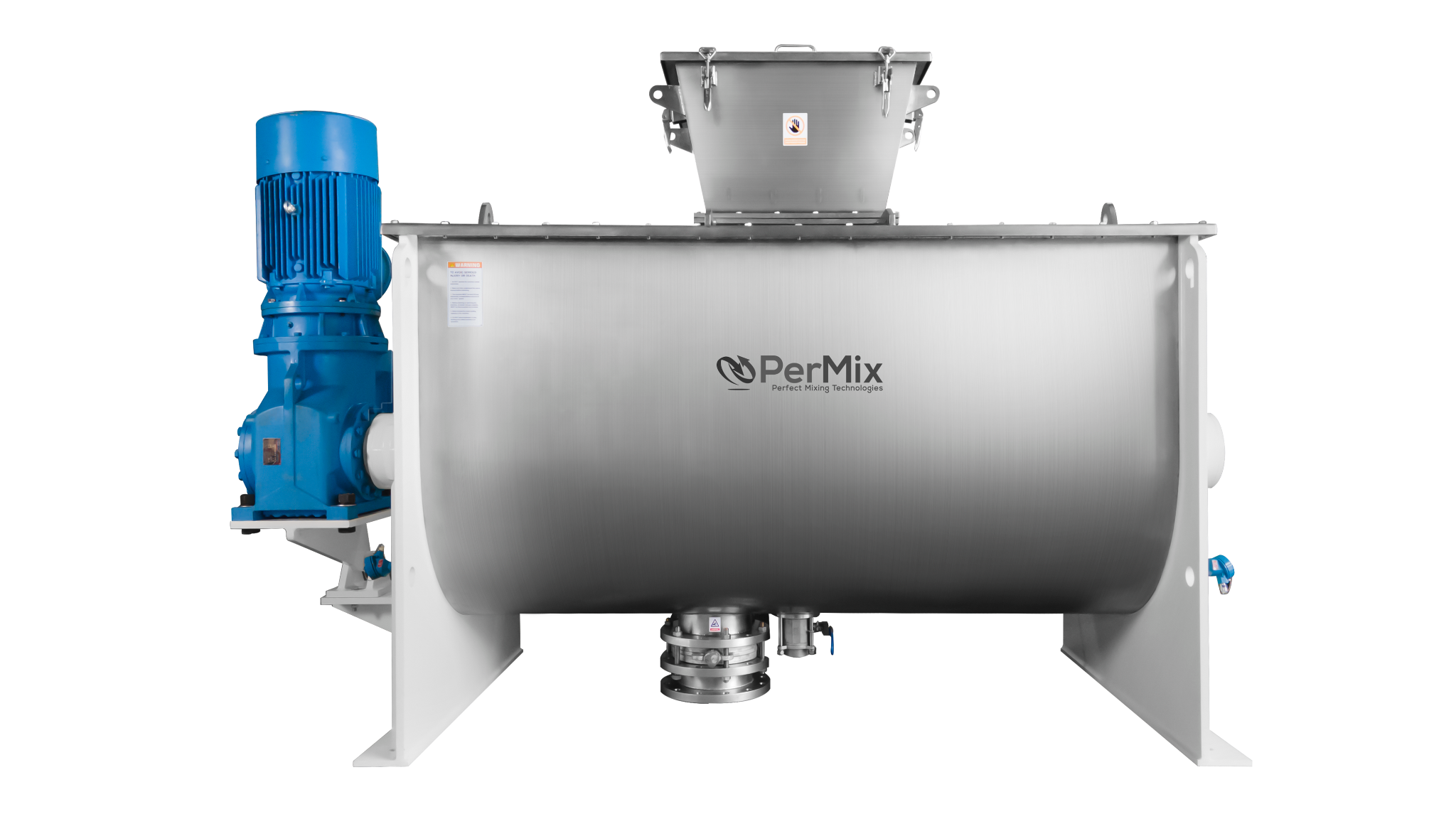

PerMix presents its Ribbon Mixer from the PRB series. The Ribbon Mixer is an efficient and versatile blending machine for the mixing of dry powders, granules and viscous pastes homogeneously. It is able to give a satisfying ‘ homogeneity grade ‘ for mixing jobs due to the special design of a mixing agitator with dual ribbons inside of a U-shaped working trough.

The PRB Ribbon Mixer is able to achieve a maximum “mixing ratio” of 1:500,000 , which means you can get the desired mixture proportion of components in as small as 1 gram with a batch of 500kg

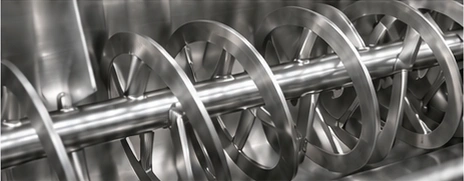

The Working of the PerMix PRB Ribbon Mixer consists of one electrical motor, one gearbox, and a shaft with double ribbons located in a U-Shaped vessel. The external & inner ribbons are designed in such a way that the powder materials are pushed to move from center to the two ends of the vessel, and meanwhile from ends to the center; besides , the powder materials are lifted up along the ribbon edges but then drop due to gravity. In such a three-dimensional way, the total powder can be mixed fast in the vessel. It asks for a short mixing time and relatively low power consumption.

Optional features such as heating/cooling jacket, spray nozzle, continuous operation, different types of ribbon (3 types), construction material, customized feeding & discharging, vacuum drying & de-aerating, extended height bases and external body with bead blasted finish can be offered to you by PerMix.
